The SQ Guide is a Digital Implant Guide
System Optimized for The SQ Implant Fixture

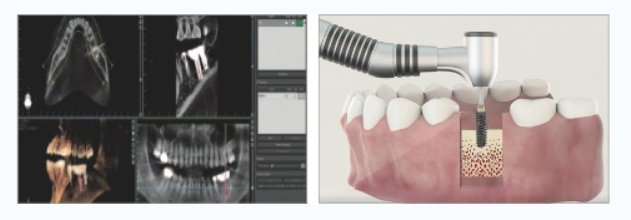

Full Solution Guide System
Place the implant in the correct position by virtually doing the implant placement through the software
Exclusive Guide System for The SQ Implant
Computer-guided implant placement for the SQ Implant that has the advanced SLA surface
The SQ Implant Fixture Sizes
Diameter: Ø3.5, Ø4.0, Ø4.5, Ø5.0
Length: 7.0mm, 8.0mm, 10.0mm, 12.0mm, 14.0mm

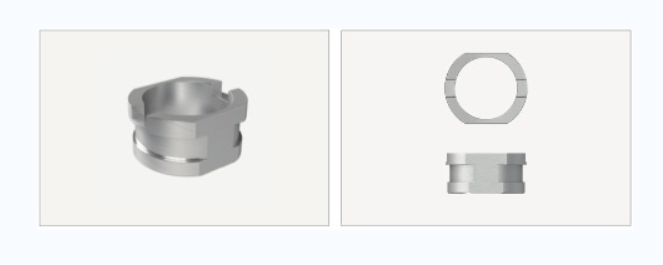

SQ GUIDE Sleeve
- Titanium metal sleeve is used
- SQ GUIDE Sleeve information
- Base Offset: 9.0mm
- Inner Diameter: Ø5.35
- Length: 3.5mm, 4.5mm

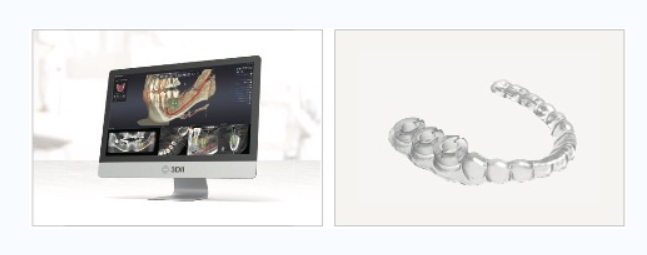

SQ GUIDE Software
- SQ GUIDE is available with Dentis Guide S/W or Implant Studio S/W
- Chair-side production is possible with DENTIS Implant and sleeve library
SQ Guide Kit
Why SQ Guide special?
Safety
- Irrigation function added to prevent bone loss and bone heating
- Available exclusively for the Dentis SQ Implant
- Using a metal sleeve helps prevent contamination of the
- surgical site by guide resin, which may occur during drilling

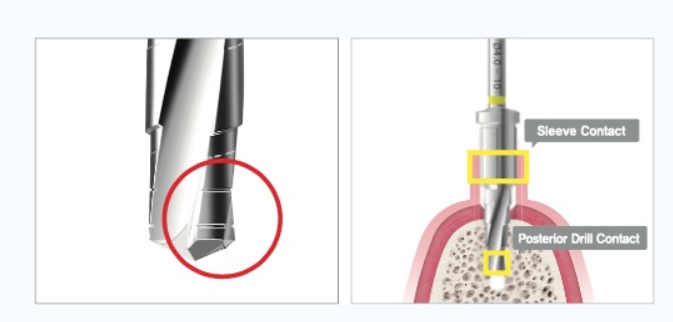

Accuracy
With the initial drill (F Ø3.5 STEP Drill), you can drill without slipping because of the side cutting function
Drilling can be performed with precision as the lower end of the trailing drill is anchored in the previously drilled site, while the upper end, or guide hole, is securely stabilized by the sleeve around the drill’s barrel

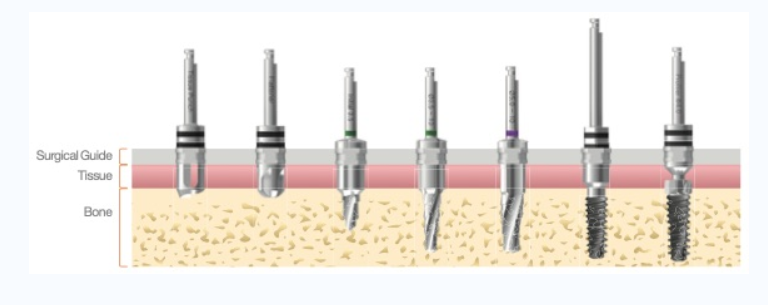

Convenience
By adopting the multi-stage drill, the number of drills can be minimized and the operation can be performed quickly.
Added convenience: Tissue Punch, Flattener, Profiler Drill, etc.

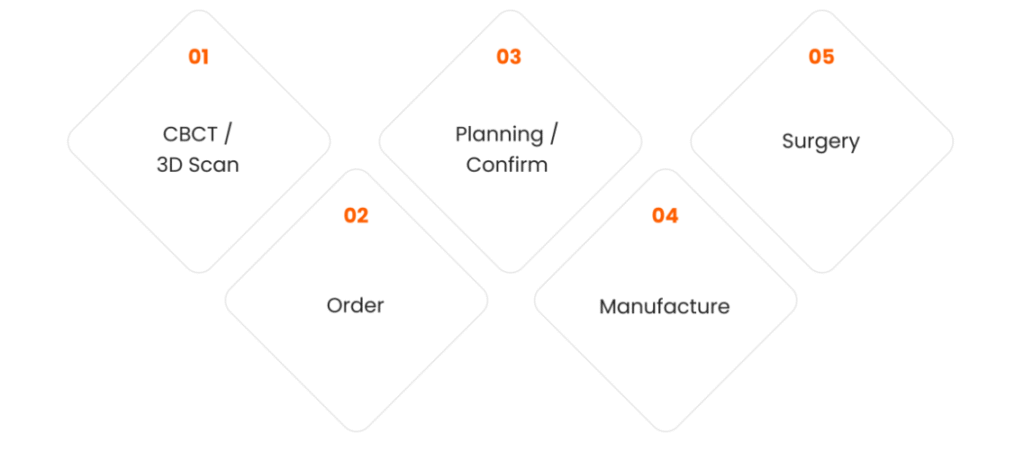

SQ GUIDE System Workflow
